AGRİSET 115200

Capacity: 115200 eggs in chicken, 115 eggs in 24 development cars.

Control System: PLC Software, Touch color display, monitoring alarm records, temperature, humidity and ventilation values ​​graphically.

Sensors:
- Temperature Sensor: Digital, high repetability due to direct air contact and high accuracy. 0-50C 0-10Vdc
- Humidity Sensor: Digital sensor with 0-10 Vdc output, 0% RH-100% RH readable.

Cabinet: Sandwich panel 40 mm in both sides with 2.2mm thick glass fiber-reinforced embossed plate with 28 Dansity XPS Polysterenden formed. All the metal parts of the machine are made of chrome.

Turning System: Pneumatic stroke cylinder is used.

Humidification System:

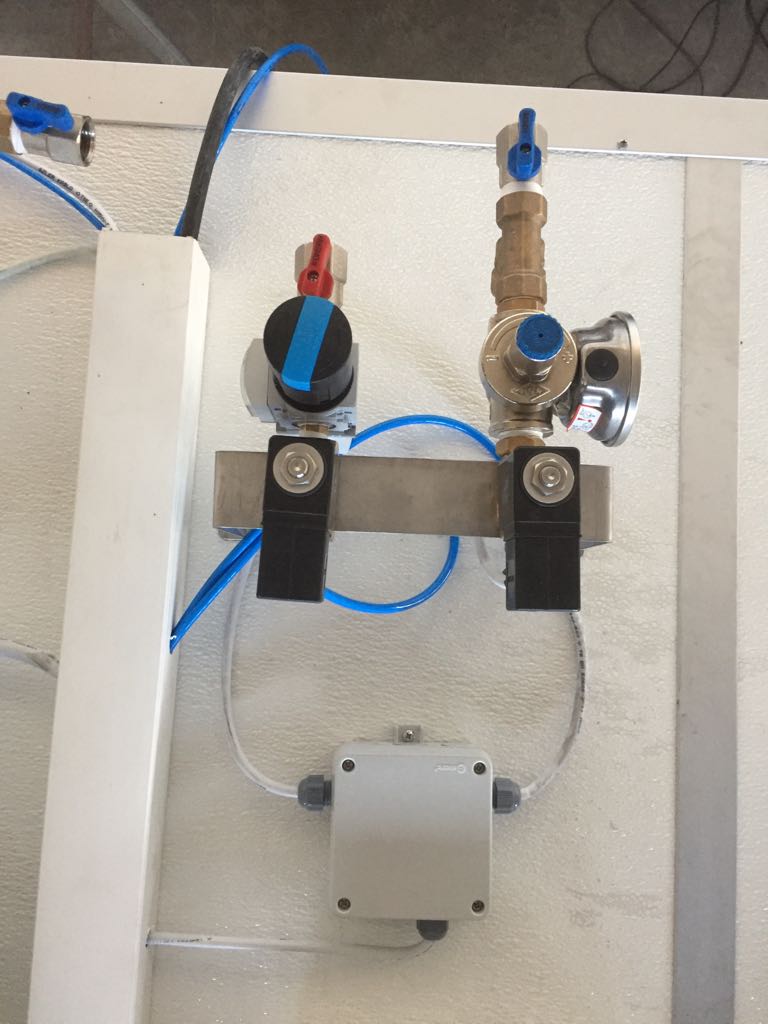

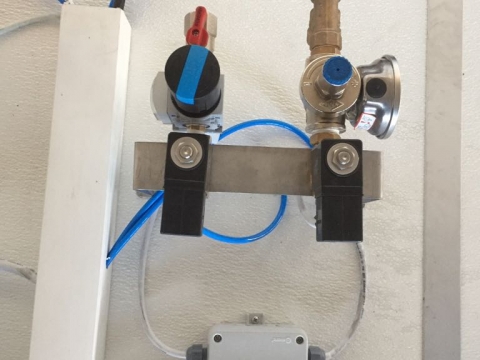

a- Water and Air Mixed Nozzle

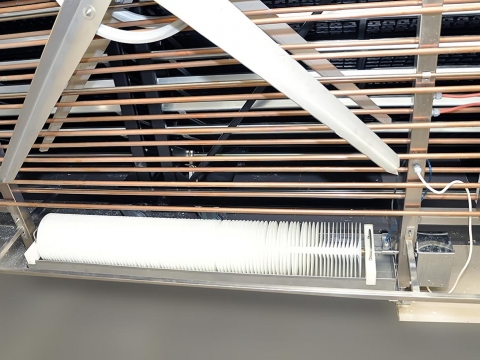

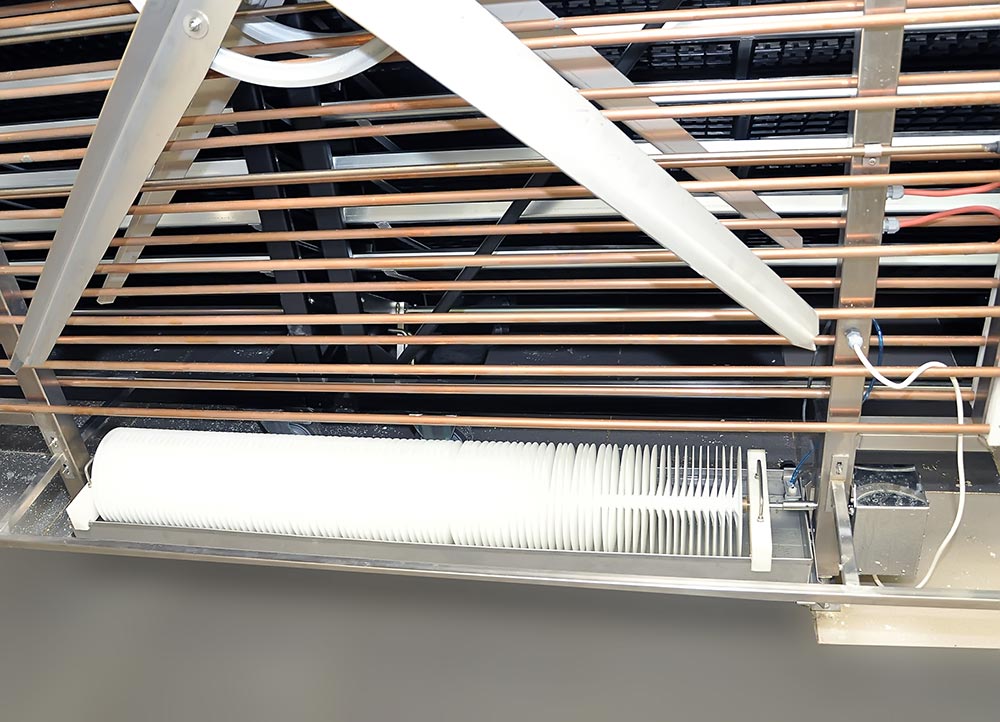

b- Disk humidification consists of 2 rows 200mm diameter, 190 discs.

Heating System: 6 units are made with 1000W-220V crom resistances heaters.

Cooling System: Bidirectional cooling is done with air and / or water. Cooling capacity 200Kcal / h15C

Ventilation System: Servo controlled, temperature dependent automatic Minimum and maximum values ​​are made.

Dimensions: Width: 178 cm, Depth: 210 cm, Height: 230 cm + motor 30 cm.

Pulsator: 90 cm inox wings, 74 mm long, 85 mm motorized scraper, 2.2 KW ABB electric motor.

Power: 3x380 VAC + 220VAC, 50Hz 5KW
